Reliable Precision Subcontractor for Tool Shops

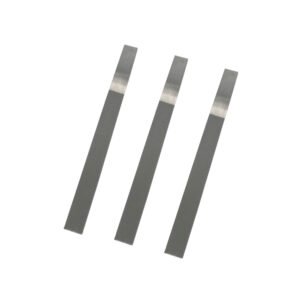

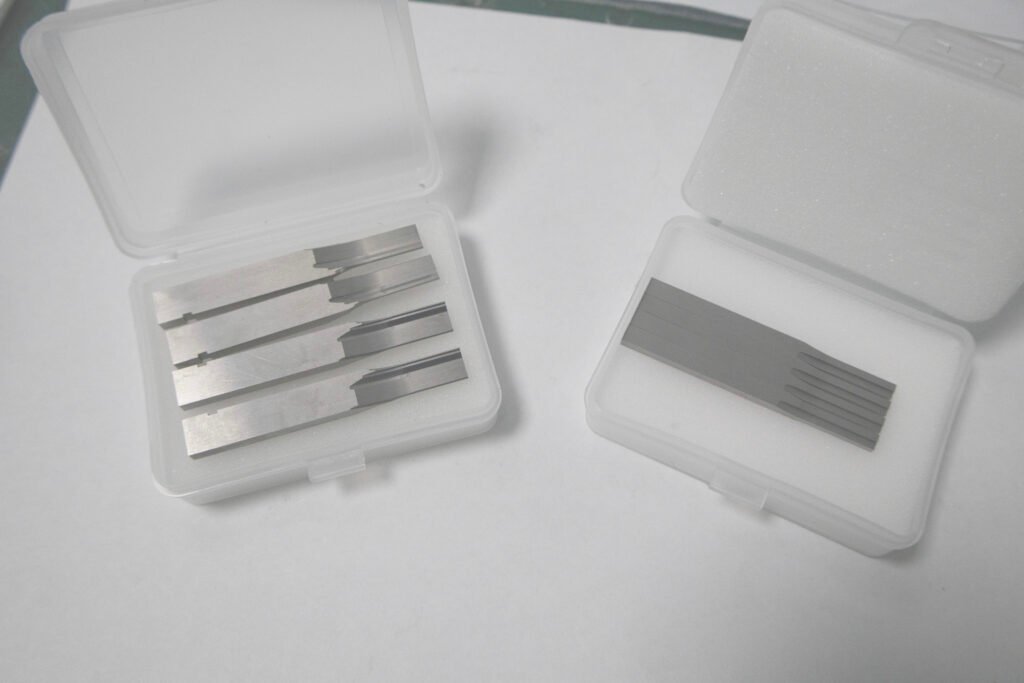

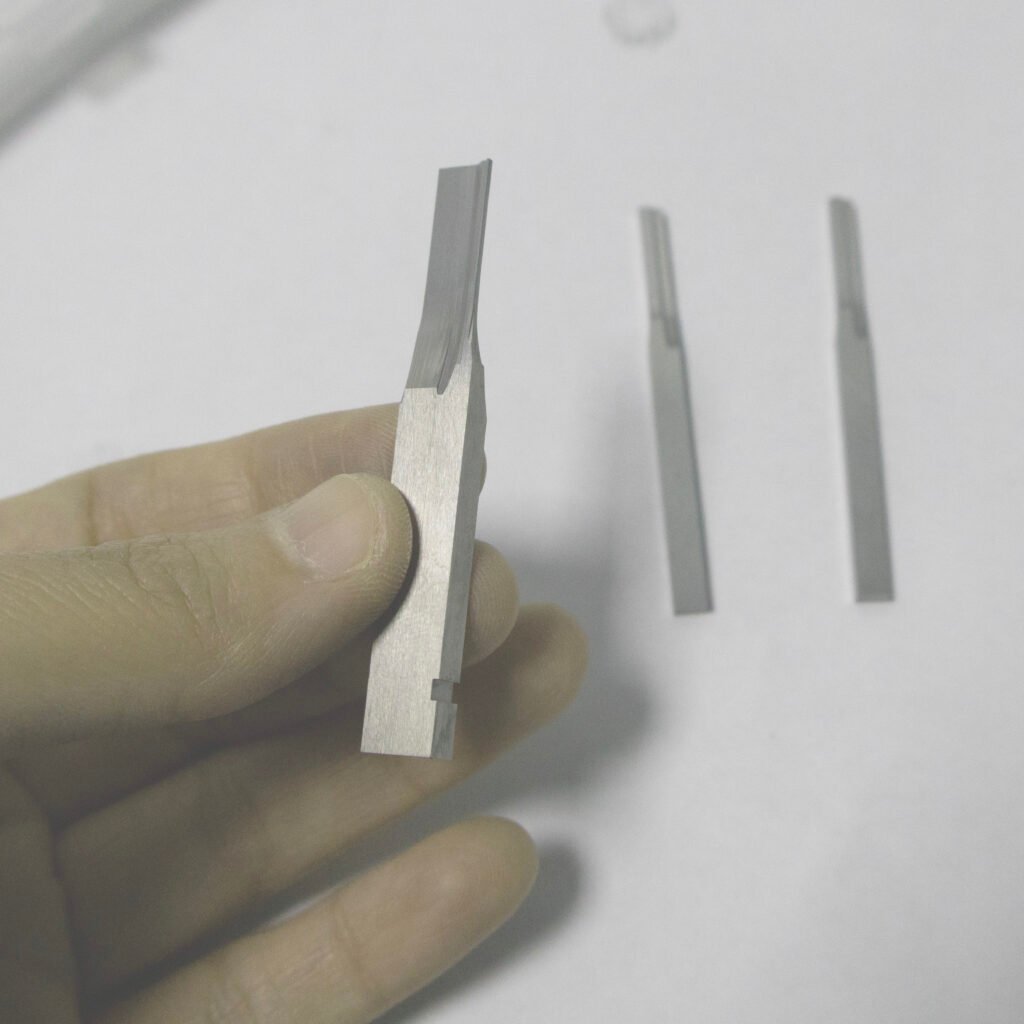

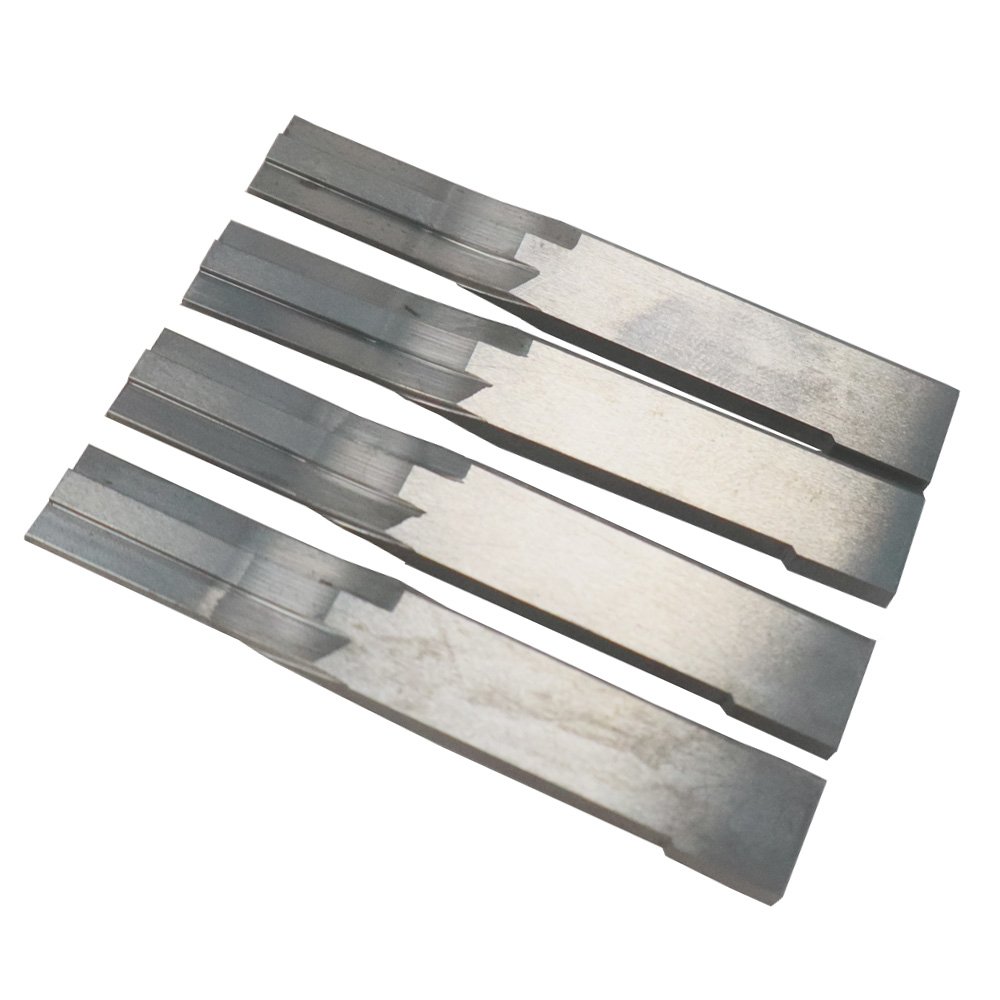

PG Grinding Punch for Stamping Die
PG Grinding Punch for Stamping Die
Outsource PG Grinding Punch From China
What kind of PG Grinding Punch We Provide
- Stepped, profiled, and special-shape punches
- Forming punches for progressive stamping dies
- PG-ground punches for tight dimensional control
Capability
| Item | Capability |
|---|---|
| Process | PG Optical Profile Grinding |
| Tolerance | ±0.001 ~ ±0.002 mm |
| Surface Finish | Ra 0.2 / 0.4 |
| Materials | SKD11, DC53, SKH-9, Tungsten Carbide |
| Heat Treatment | Soft & hardened |
| Key Strength | Complex profiles, stepped geometry, repeatable precision |
Why Choose PG Grinding Punch
- Stable geometry for long tool life
- Accurate fitting for multi-step dies
- Inspection and records ensure repeatable production
Who We Work With
We mainly serve:
- Mold & die manufacturers
- Stamping and punching factories
- Tooling suppliers requiring custom precision parts
Our customers choose us when accuracy and delivery reliability matter more than low price.
Typical Challenges We Help Solve
Do you often face these issues?
- Custom punches with multiple steps or complex profiles are difficult to control in accuracy
- Inserts require tight fitting, causing repeated assembly and adjustment
- Trial mold or modification parts are urgent, but suppliers miss deadlines
- Repeat orders show dimensional inconsistency
Our job is to make these problems predictable and controllable.
Custom Parts We Manufacture
We specialize in non-standard, drawing-based precision components, including:
- Custom punches (stepped, profiled, angled, special shapes)
- Precision inserts and core components
- PG-ground forming punches
- Wire EDM precision profile parts
- Small-size, high-hardness tooling components
- Trial, modification, and small-batch production parts
Each part is manufactured with clear control of critical dimensions and fitting requirements.
Why Mold Makers and Stamping Plants Choose Us
Precision You Can Rely On
- Critical dimensions confirmed before machining
- Inspection performed after processing
- Internal records maintained for repeat orders
Stable and Predictable Lead Time
- Familiar with tooling and stamping production schedules
- Flexible arrangement for trial and modification parts
- Clear communication on delivery expectations
Tooling-Focused Manufacturing Mindset
- We don’t just machine to drawing—we consider fitting, assembly, and service life
- Support for minor design or process optimization when needed
Quality Control
- PG optical inspection for profile accuracy
- Dimensional checks on key tolerances
- Controlled process for repeat production
Inspection data can be provided upon request.
Cooperation Process
- Send drawings or samples
- Confirm machining method, tolerance, and lead time
- Quotation approval
- Manufacturing → Inspection → Delivery
Small-quantity trial orders are welcome before long-term cooperation
FAQs
What tolerance can you achieve with PG optical profile grinding?
What is the minimum radius / sharp corner you can grind?
Can you grind complex or asymmetric profiles?
What materials do you work with?
Do you have experience with connector molds / precision stamping dies?
Can PG grinding replace wire EDM for certain profiles?
What is your typical lead time?
Is there a minimum order quantity (MOQ)?
How do you protect customer drawings and intellectual property (IP)?
Why choose PG optical profile grinding instead of standard grinding?
